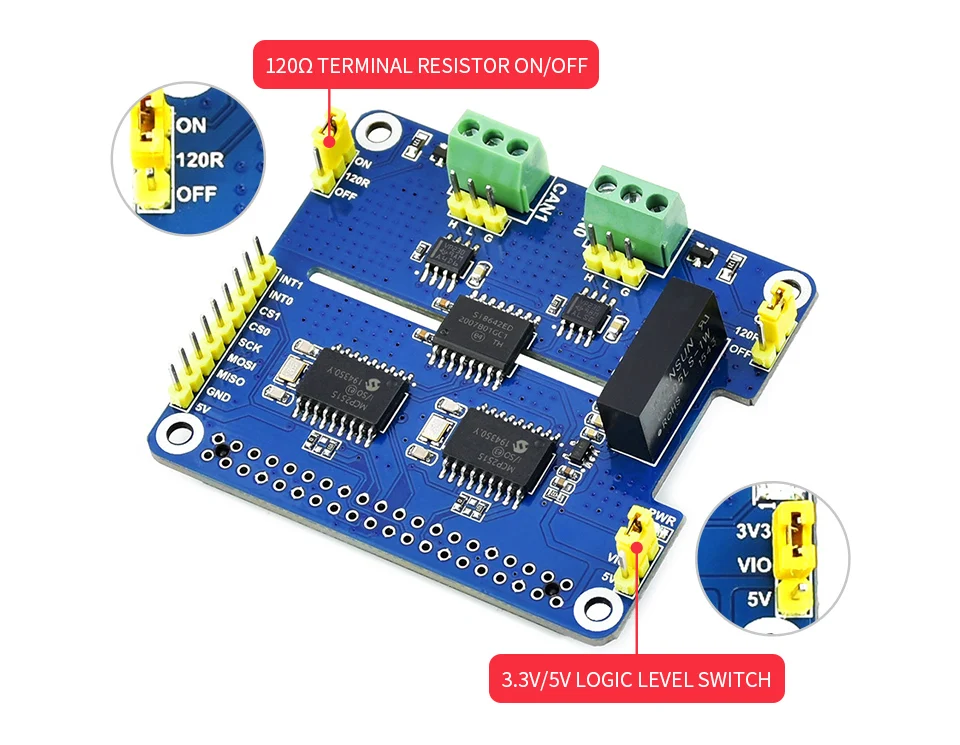

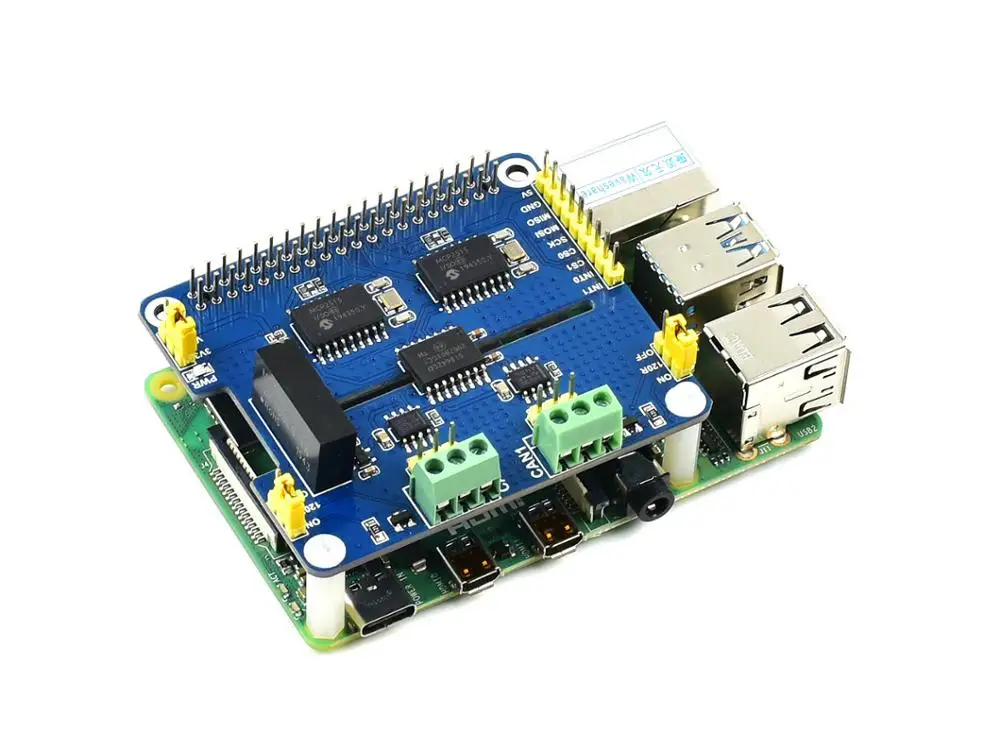

 <div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000005060008" type="custom"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext">DESCRIPTION2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi,MCP2515 + SN65HVD230 Dual Chips Solution,Multi Onboard Protection Circuits2-Channel CAN HAT For Raspberry Pi2-Channel Isolated CAN Bus Expansion,Multi Onboard Protection CircuitsComes with manual and examples in C / Python<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362696_491_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>What Can It Do?Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362697_548_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>Designed For Raspberry Pi SeriesStandard Raspberry Pi 40PIN GPIO Header,Customized For Raspberry Pi Series Boards<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362697_564_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>FEATURES AT A GLANCEAdopts MCP2515 and SN65HVD230 dual chips combined solution,allows 2-channel CAN communicationIntegrated power isolation,providing stable isolated voltage,requires no extra power supply for the isolated terminalOnboard digital isolator,signal isolation makes the communication more safe,more stable,and better anti-interferenceOnboard TVS (Transient Voltage Suppressor) diode,provides ESD protection and transient peak voltage protectionOnboard voltage translator,select 3.3V/5V operating voltage by jumperOnboard 120Ω terminal resistor,configured by jumperBreakout SPI control pins,for connecting with host control boards like STM32/Arduino2-Channel CAN CapabilityMCP2515 CAN Controller + SN65HVD230 CAN Transceiver<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362698_157_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>Electrical Isolation Circuitry Safe &amp; StableSM24CANB TVS Diode,ESD Protection,Transient Peak Voltage Protection<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362698_61_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>Flexible And Handy JumpersEasily Select 3.3V / 5V Operating Voltage,Or Enable/Disable 120Ω Terminal Resistor,Via Onboard Jumpers<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362699_699_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>What&#x27;s On Board<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362699_481_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>MCP2515 CAN controllerSN65HVD230 transceiverSI8642ED digital isolatorRT9193-33 power chipB0505LS-1W power supply isolation moduleSM24CANB TVS diodeStandard Raspberry Pi 40PIN GPIO headerCAN bus screw terminalMCU control pins120Ω terminal resistor switch3.3V/5V logic level switchPower indicatorPinout Definition<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362699_356_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>SpecificationsCAN CONTROLLER MCP2515 POWER SUPPLY VOLTAGE 5VCAN TRANSCEIVER SN65HVD230 LOGIC LEVEL VOLTAGE 3.3V/5VCONTROL BUS SPI DIMENSIONS 65 × 56.5(mm)Outline Dimensions<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362699_390_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>Resources &amp; Services<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362700_175_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/><img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362700_596_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>with manual and examples in C / PythonWIKI: www.waveshare.com/wiki/2_CH_CAN_HAT* Resources for different product may vary,please check the wiki page to confirm the actually provided resources.<div> </div>PACKAGE CONTENTWeight: 0.028 kg2-CH CAN HAT x1Standoffs pack (2pcs) x12×20PIN female header x1<img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362700_86_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/><img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362701_456_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/><img src="https://eduengteam.com/wp-content/uploads/2024/02/1708362701_317_Waveshare-2-Channel-Isolated-CAN-Expansion-HAT-for-Raspberry-Pi-Dual.jpg" slate-data-type="image"/>window.adminAccountId=121285571;<div class="detailmodule_dynamic"></div> </div></div><div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004479601" type="relation"></kse:widget></div>
