<h1>What is STM32?</h1>
<div class="ReversoReader__added_line_break">What is STM32? STM32 is a 32-bit Flash microcontroller family developed by ST Microelectronics. It is based on the ARM® Cortex®‑M processor and offers a 32‑bit product range that combines very high performance,real-time capabilities,digital signal processing,and low‑power,low‑voltage operation.</div>
<div>A detailed description of each series,development tools,and part number decoding can be found on Wikipedia</div>
<div>Resource: <a title="STM32 wikipidea" href="https://eduengteam.com/2020/10/what-is-stm32.html">What is STM32? </a></div>
<div> </div>
<div>
<p>[embed]https://youtu.be/eQuT_yilnCI[/embed]</p>
</div>
<div><a href="https://www.eduengteam.com/wp-content/uploads/2020/10/stm32.pdf">stm32</a></div>
<div> </div>
<h2><img class="alignnone wp-image-3218" src="https://www.eduengteam.com/wp-content/uploads/2020/10/art_019_IR_sensor-300x218.png" alt="" width="479" height="348" /></h2>

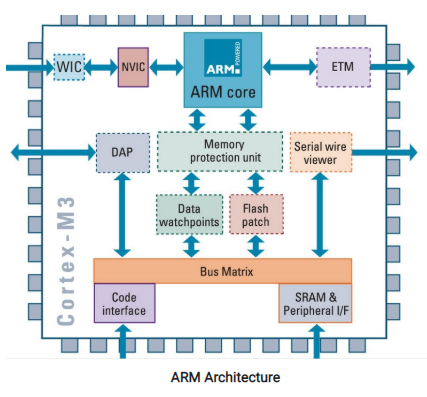

<h2>What is STM32? ARM Architecture</h2>
<p id="3638" class="ij ik dn il b im in hv io ip iq hy ir is it ib iu iv iw ie ix iy iz ih ja jb df cg" data-selectable-paragraph="">ARM stands for Advanced Risk Machine. It is one of the most popular architectures used in devices like cameras,mobile phones,and embedded system devices. These are known for their low-power-consumption vs better performance abilities.</p>
<figure class="gh gi gj gk gl gm gn go fo gp gq gr gs gt bq gu gv gw gx gy gz paragraph-image">
<div class="cx cy jc">
<div class="hf s hg hh">
<div class="jd hj s">
<div class="ha hb t u v hc aj ay hd he"> </div>
<p><img class="th ti t u v hc aj c" src="https://miro.medium.com/max/534/1*GzB8IN5VnHBgnQR4G92F-g.png" sizes="427px" srcset="https://miro.medium.com/max/345/1*GzB8IN5VnHBgnQR4G92F-g.png 276w,https://miro.medium.com/max/534/1*GzB8IN5VnHBgnQR4G92F-g.png 427w" alt="Image for post" width="427" height="397" /></p>
</div>
</div>
</div>
</figure>
<p id="0e46" class="ij ik dn il b im je hv io ip jf hy ir is jg ib iu iv jh ie ix iy ji ih ja jb df cg" data-selectable-paragraph="">ARM is a 32-bit RISC (Reduced Instruction Set Computing) architecture. 32-bit implies that there are 32-lines in the address bus,ie; it can address up to 2³² locations. The RISC instruction implies that the hardware is complex and a lot of process handling is done by the hardware,thus making it easier to code instructions for ARM processors.</p>
<h2 id="889d" class="hr hs dn au av ht hu hv hw hx hy hz ia ib ic id ie if ig ih ii cg" data-selectable-paragraph="">The STM32F4-Discovery</h2>
<p id="2729" class="ij ik dn il b im in hv io ip iq hy ir is it ib iu iv iw ie ix iy iz ih ja jb df cg" data-selectable-paragraph="">Since STM32 is an ARM-based microcontroller,it will have distinctions based on whether it is Core 7,Core 4,Core 0,etc. In this blog,I have made use of a development kit ie; STM32F4 Discovery board. A dev-kit,as can be guessed from the name,is used when developing an application. It is essentially a break-out board,which gives access to almost all the pins on the STM32 IC and also has a built-in accelerometer and magnetometer. Thus,it is a great tool to develop and test your application/firmware. Once it can be ensured that the code is good and working,it can then be ported to an actual IC on a production-grade PCB.</p>
<p id="b4c7" class="ij ik dn il b im je hv io ip jf hy ir is jg ib iu iv jh ie ix iy ji ih ja jb df cg" data-selectable-paragraph="">The STM32F4 dev-kit has the STM32F407VGTx as the onboard IC. If we go through the datasheet,the IC part number gives the specific details and capabilities of the IC.</p>
<pre class="gh gi gj gk gl jj jk cm"><span id="4503" class="cg hr hs dn jl b ep jm jn s jo" data-selectable-paragraph=""><strong class="jl jp">STM32</strong> -&gt; 32-bit microcontroller
<strong class="jl jp">F</strong>     -&gt; general-purpose
<strong class="jl jp">407</strong>   -&gt; camera-interface/ethernet connectivity
<strong class="jl jp">V</strong>     -&gt; 100 pins
<strong class="jl jp">G</strong>     -&gt; 1024 KB Flash Memory
<strong class="jl jp">T</strong>     -&gt; LQFP IC Package</span></pre>
<h2 id="3413" class="hr hs dn au av ht hu hv hw hx hy hz ia ib ic id ie if ig ih ii cg" data-selectable-paragraph="">The Startup Procedure</h2>
<p id="d2dd" class="ij ik dn il b im in hv io ip iq hy ir is it ib iu iv iw ie ix iy iz ih ja jb df cg" data-selectable-paragraph="">The startup procedure for the STM32 is not as simple as it would be in an Arduino. There is a learning curve,and it is quite steep but I will try to explain it in a concise manner. To learn more,we will need to refer to the user manual. A link to it is given below.</p>
<p id="b3ca" class="ij ik dn il b im je hv io ip jf hy ir is jg ib iu iv jh ie ix iy ji ih ja jb df cg" data-selectable-paragraph="">Firstly,we need to set up the system clocks and peripherals of the STM32 chip. This is done via setting the configuration of the RCC registers. The RCC is a set of registers which have the clock control,like clock frequency and Prescaler settings. Then we need to set the registers of the peripherals that we need to use.</p>
<div> </div>


<figure class="wp-block-image size-full is-style-default"><img src="https://eduengteam.com/wp-content/uploads/2022/02/What-is-STM32.png" alt="What is STM32?" class="wp-image-4316"/><figcaption>What is STM32?</figcaption></figure>



<p></p>
