Review for The PCB Platform The Ultimate All in one PCB Partner

PCB Platform The Ultimate All-in-One PCB Partner Review

PCB Partner Ultimate All-in-One PCB platform Inspection Checked,Printed,Tested,and Shipped

PCBWay is the ultimate all-in-one platform to get your PCB checked,printed,tested,and shipped. With our hassle-free online ordering system,you can easily get a quote for your PCB project and have it delivered to your doorstep in no time. Our advanced fabrication facilities allow us to print and test your PCBs with exceptional quality and accuracy,so you can rest assured that your project will be done right the first time.

Print your PCBs in 3 simple steps!

Select your board specifications and upload your Gerber file.
They review the file for issues with our DFM.
You Checkout.

Then it’s our turn!

4. The design is put on

the production line.

5. The PCBs are printed

and tested.

6. Then they’re packed and

shipped to you

PCB Partner FR4 PCB

An FR4 PCB is a printed circuit board made of fiberglass-reinforced epoxy,and it is used in a wide variety of electronic applications. The board is composed of multiple layers of fiberglass cloth and epoxy resin that are laminated together under heat and pressure. This creates a very strong and durable board that can withstand the high temperatures and electrical currents associated with modern electronics.

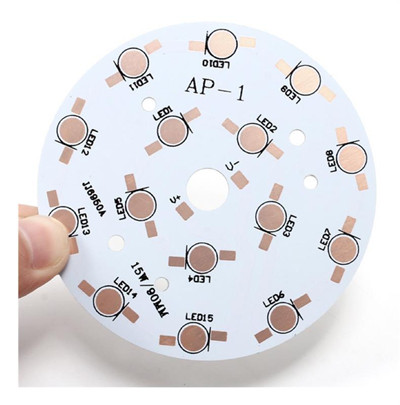

PCB Partner -Aluminum Base PCB Partner

A PCB with an aluminum base is a type of PCB that has a higher thermal conductivity than other types of PCBs. This allows it to dissipate heat more effectively,making it ideal for applications that require a high degree of thermal precision. Additionally,aluminum base PCBs are less likely to warp or deform when exposed to high temperatures,making them a more reliable choice for those applications.

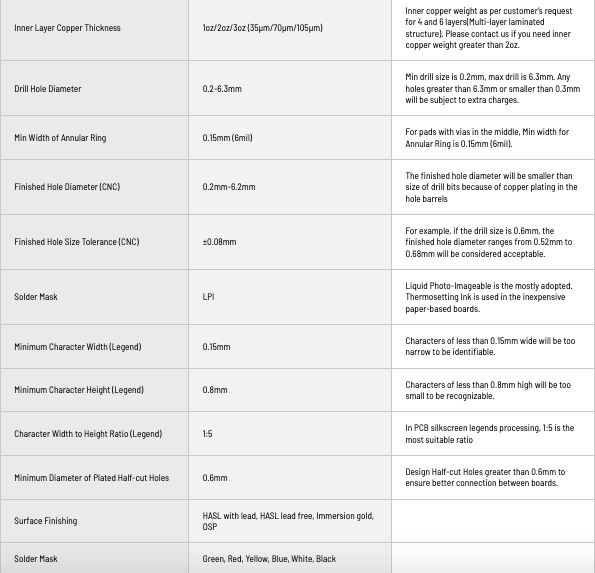

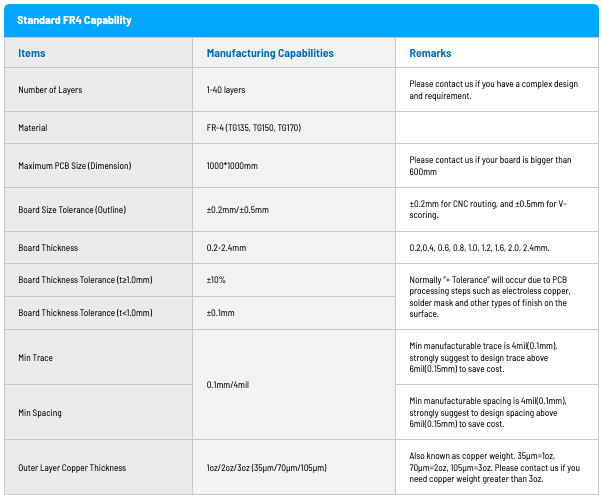

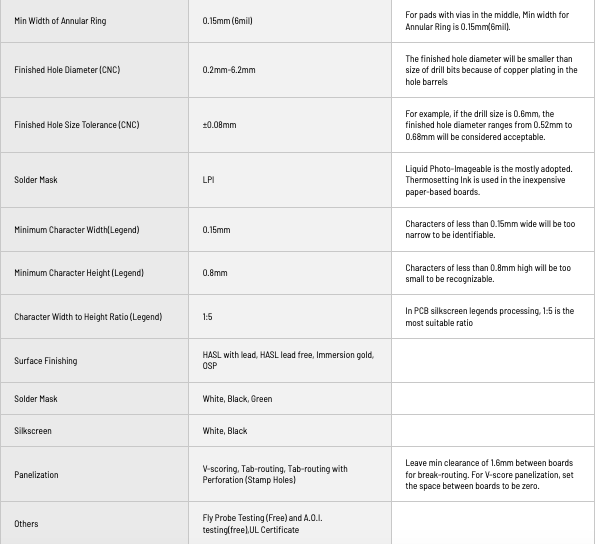

Standard FR4 Capability

Standard FR4 is a material used in printed circuit boards. It is made of fiberglass and epoxy Resin ,and has a thermal conductivity of 0.3 W/mK. This makes it an ideal material for PCBs,as it can dissipate heat quickly and efficiently.

FR4 is a material used in printed circuit boards. It has good heat resistance and mechanical properties,making it ideal for high-temperature and high-stress applications.

Standard FR4 has a glass transition temperature of 140 degrees Celsius,meaning it can withstand temperatures up to that point without losing its structural integrity. It also has high dielectric strength,making it a good option for electrical applications.

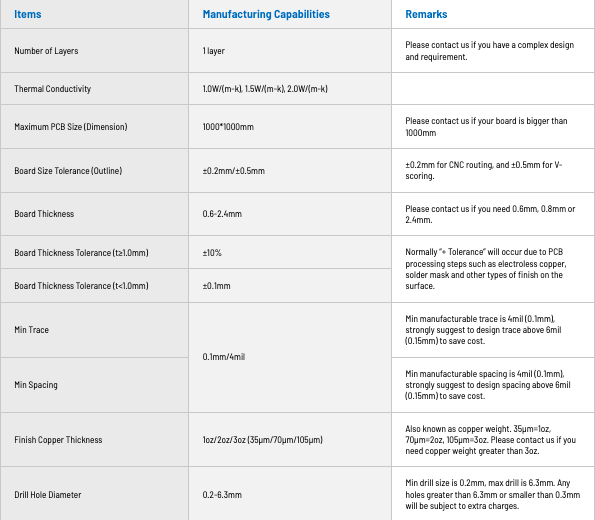

Aluminum PCB Capabilities (PCB Plattform Capabilities)

An aluminum PCB is a printed circuit board that uses aluminum as the main conductor. This type of PCB offers several advantages over traditional copper-based boards,including weight savings,increased electrical efficiency,and improved thermal management. Aluminum PCBs are also less susceptible to corrosion and oxidation,making them ideal for applications that require high reliability and long lifespans.

Aluminum PCB capabilities allow for a much smaller and lighter final product. The use of aluminum allows for higher conductivity,which is beneficial when transferring signals between components on the board. Additionally,aluminum is corrosion-resistant,which can be important in certain environments.

Why Choose Them?

PCBPartner.com is the ultimate,online portal to get your PCB checked,printed,tested,and shipped. They have over 20 years of experience in PCB fabrication and every board They ship out reflects that. On our platform,you can take care of all your PCB needs,from PCB design to PCB manufacturing and assembly,or from prototype to mass production. There’s really no need to go anywhere else.

Variety of PCB Material

They can provide up to 54 layers during PCB manufacturing. They also support FR-4 with different tg (135,150,170),CTI 600 (Halogen free) PCB material,Aluminum base PCB,Flexible PCB,Rigid-Flexible PCB,Rogers,and many more materials. Whatever material you need,we can deliver.We have regular PCB production for these special PCB specifications

Special PCB Specifications:

● Impedance control

● 1-3 oz copper thickness for outer/inner layers

● Hard gold,ENEPIG,OSP surface finish

● Two different solder mask color on a PCB

● Edge connector plating

● Edge plating

● Via filled with aluminum/resin

● And more…

Fast Lead Time

Turnaround is quick as prototypes take as little as 24 hours to produce,with direct pickup service at our warehouse. They partner with DHL and FedEx for this to make sure you get your PCB in the shortest time possible.They also offer express production options for small and medium-sized batches to get your boards EVEN quicker.

Get competitive pricing on prototypes and your future mass production. For any mass production orders,contact us so They can find the best pricing and shipping solutions to maintain your competitiveness.

Quality Control

Quality Control

After 20 years,They have built a strict standard of quality - our quality control teams ensure all PCBs pass the AOI and E-test 100%.

Technical Support

They have an experienced PCB manufacturing,engineering team to help you detect potential mistakes in your Gerber files. They also use - and have used for 15+ years - a reliable software,iPCB,to detect mistakes.

Excellent Customer Service Team

The platform offers a comprehensive and user-friendly inspection solution for printed circuit boards (PCBs). It is simple to use and helps users save time and money.

Flexible Payment Term
They have a passionate (and patient!) customer service team to   help you solve any problems while ordering,handle engineering questions,or answer any after-sales service request. They will respond to you within 1 working day,that’s our customer service guarantee.

PCBPartner.com is the ultimate online portal to get your PCB checked,printed,tested,and shipped. On our platform,you will find solutions to all your requirements,from PCB design to PCB manufacturing,from prototype to mass production,and from PCB fabrication to PCB assembly. There’s no need to go anywhere else.

Company

PCBPartner.com is owned and operated by Kinji Group,which was established in 1997. They have over 20 years of experience in PCB manufacturing,PCB design,component manufacturing and distribution,PCB assembly and PCB cam software development.

Our strength

While Kinji Group has 3 PCB factories in China,They have also developed strategic partnerships with more than 15 other factories around Asia. We,therefore,have a large group of specialists in PCB manufacturing,quality control,technical support,and part sourcing to support your innovative ideas and products.
