<h2><strong>ARDUINO NANO EVERY</strong></h2>
<img class="alignnone size-medium wp-image-3332" src="https://www.eduengteam.com/wp-content/uploads/2021/01/ARDUINO-NANO-EVERY-300x225.jpg" alt="ARDUINO NANO EVERY" width="300" height="225" />

[embed]https://youtu.be/Ofb-onrGLUQ[/embed]

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!

&nbsp;

The Arduino Nano Every is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price,make the Nano Every particularly suited for wearable inventions,low-cost robotics,electronic musical instruments,and general use to control smaller parts of larger projects.

&nbsp;

The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor,the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory),and with a lot more variables (the RAM is 200% bigger).

&nbsp;
<h3>An Improved Arduino Nano</h3>
&nbsp;

If you used Arduino Nano in your projects in the past,the Nano Every is a pin-equivalent substitute. The main differences are a better processor and a micro-USB connector.

&nbsp;

The board comes in two options: with or without headers,allowing you to embed the Nano Every inside any kind of inventions,including wearables. The board comes with tessellated connectors and no components on the B-side. These features allow you to solder the board directly onto your own design,minimizing the height of your whole prototype.

&nbsp;

Oh,and did we mention the improved price? Thanks to a revised manufacturing process,the Arduino Nano Every costs a fraction of the original Nano … what are you waiting for? Upgrade now!

&nbsp;
<h3>Get Many Nanos at Once</h3>
&nbsp;

If you are in the situation of needing many boards for your classroom,or if you need to present a complex prototype with many functional blocks,there is also the possibility of getting an <a href="https://store.arduino.cc/nano-every-pack" target="_blank" rel="noopener noreferrer">Arduino Nano Every pack</a> with a discounted pack price,saving on the unit price of each board.

&nbsp;

The pack is available in two sizes containing either 3 or 6 boards,without headers. Whether you want to minimize the size of your prototypes or share the joy of electronics with your friends,this is the best option you will find.

The Arduino Nano Every is based on the ATMega4809 microcontroller.
<table border="0">
<tbody>
<tr>
<td>Microcontroller</td>
<td>ATMega4809 <a href="https://content.arduino.cc/assets/Nano-Every_processor-48-pin-Data-Sheet-megaAVR-0-series-DS40002016B.pdf" target="_blank" rel="noopener noreferrer">(datasheet)</a></td>
</tr>
<tr>
<td>Operating Voltage</td>
<td>5V</td>
</tr>
<tr>
<td>VIN min-MAX</td>
<td>7-21V</td>
</tr>
<tr>
<td>DC Current per I/O Pin</td>
<td>20 mA</td>
</tr>
<tr>
<td>DC Current for 3.3V Pin</td>
<td>50 mA</td>
</tr>
<tr>
<td>Clock Speed</td>
<td>20MHz</td>
</tr>
<tr>
<td>CPU Flash Memory</td>
<td>48KB (ATMega4809)</td>
</tr>
<tr>
<td>SRAM</td>
<td>6KB (ATMega4809)</td>
</tr>
<tr>
<td>EEPROM</td>
<td>256byte (ATMega4809)</td>
</tr>
<tr>
<td>PWM Pins</td>
<td>5 (D3,D5,D6,D9,D10)</td>
</tr>
<tr>
<td>UART</td>
<td>1</td>
</tr>
<tr>
<td>SPI</td>
<td>1</td>
</tr>
<tr>
<td>I2C</td>
<td>1</td>
</tr>
<tr>
<td>Analog Input Pins</td>
<td>8 (ADC 10 bit)</td>
</tr>
<tr>
<td>Analog Output Pins</td>
<td>Only through PWM (no DAC)</td>
</tr>
<tr>
<td>External Interrupts</td>
<td>all digital pins</td>
</tr>
<tr>
<td>LED_BUILTIN</td>
<td>13</td>
</tr>
<tr>
<td>USB</td>
<td>Uses the ATSAMD11D14A <a href="https://content.arduino.cc/assets/Nano-Every_USB-Serial_Atmel-42363-SAM-D11_Datasheet.pdf" target="_blank" rel="noopener noreferrer">(datasheet)</a></td>
</tr>
<tr>
<td>Length</td>
<td>45 mm</td>
</tr>
<tr>
<td>Width</td>
<td>18 mm</td>
</tr>
<tr>
<td>Weight</td>
<td>5 gr (with headers)</td>
</tr>
</tbody>
</table>
&nbsp;
<h3 class="subtitle">OSH: Schematics</h3>
&nbsp;

The Arduino Nano Every is open-source hardware! You can build your own board using the following files:

&nbsp;

<a class="resource eagle" href="https://content.arduino.cc/assets/NanoEveryV30.zip">EAGLE FILES IN .ZIP</a><a class="resource schematics" href="https://content.arduino.cc/assets/NANOEveryV3.0_sch.pdf">SCHEMATICS IN .PDF</a><a class="resource fritzing" href="https://content.arduino.cc/assets/Arduino%20Nano%20Every.fzpz">FRITZING IN .FZPZ</a>

&nbsp;
<h3>Pinout Diagram</h3>
&nbsp;

<img src="https://content.arduino.cc/assets/Pinout-NANOevery_latest.png" width="80%" />

&nbsp;

Download the full pinout diagram as PDF <a href="https://content.arduino.cc/assets/Pinout-NANOevery_latest.pdf" target="_blank" rel="noopener noreferrer">here</a>.

&nbsp;

Download the Fritzing file <a href="https://content.arduino.cc/assets/Arduino%20Nano%20Every.fzpz">here</a>.

&nbsp;
<h1>Getting started with the Arduino NANO Every</h1>
Arduino NANO Every board has been designed to offer a practical and cost-effective solution for all those projects that need a small and robust board,fully compatible with the iconic Arduino NANO form factor and pinout. Learn how to set up the programming environment and get the hardware up and running,ready for your projects,in minutes.

The Arduino NANO Every is programmed using the <a href="https://www.arduino.cc/en/Main/Software" rel="noopener noreferrer">Arduino Software (IDE)</a>,our Integrated Development Environment common to all our boards and running both <a href="https://create.arduino.cc/editor" rel="noopener noreferrer">online</a> and offline. For more information on how to get started with the Arduino Software visit the <a href="https://www.arduino.cc/en/Guide/HomePage" rel="noopener noreferrer">Getting Started page</a>.
<h3 id="use-your-arduino-nano-every-on-the-arduino-web-ide">Use your Arduino NANO Every on the Arduino Web IDE</h3>
<div class="download-page-row">

<a href="https://create.arduino.cc/editor" rel="noopener noreferrer"><img src="https://www.arduino.cc/wiki/8f8e4ca6440f5aaebfcde7ad33524ad9/WebEditor.svg" /></a>
<div class="download-page-desc">

All Arduino boards,including this one,work out-of-the-box on the <a href="https://create.arduino.cc/editor" rel="noopener noreferrer">Arduino Web Editor</a>,<strong>no need to install anything</strong>.

The Arduino Web Editor is hosted online,therefore it will always be up-to-date with the latest features and support for all boards. Follow this <a href="https://create.arduino.cc/projecthub/Arduino_Genuino/getting-started-with-arduino-web-editor-4b3e4a" rel="noopener noreferrer">simple guide</a> to start coding on the browser and upload your sketches onto your board.

</div>
</div>
<h3 id="use-your-arduino-nano-every-on-the-arduino-desktop-ide">Use your Arduino NANO Every on the Arduino Desktop IDE</h3>
If you want to program your Arduino NANO Every while offline you need to install the <a href="https://www.arduino.cc/en/Main/Software" rel="noopener noreferrer">Arduino Desktop IDE</a> and add the Arduino megaAVR Core to it. This simple procedure is done selecting the <strong>Tools menu</strong>,then <strong>Boards,</strong> and last <strong>Boards Manager</strong>,as documented in the <a href="https://www.arduino.cc/en/Guide/Cores" rel="noopener noreferrer">Arduino Boards Manager</a> page.

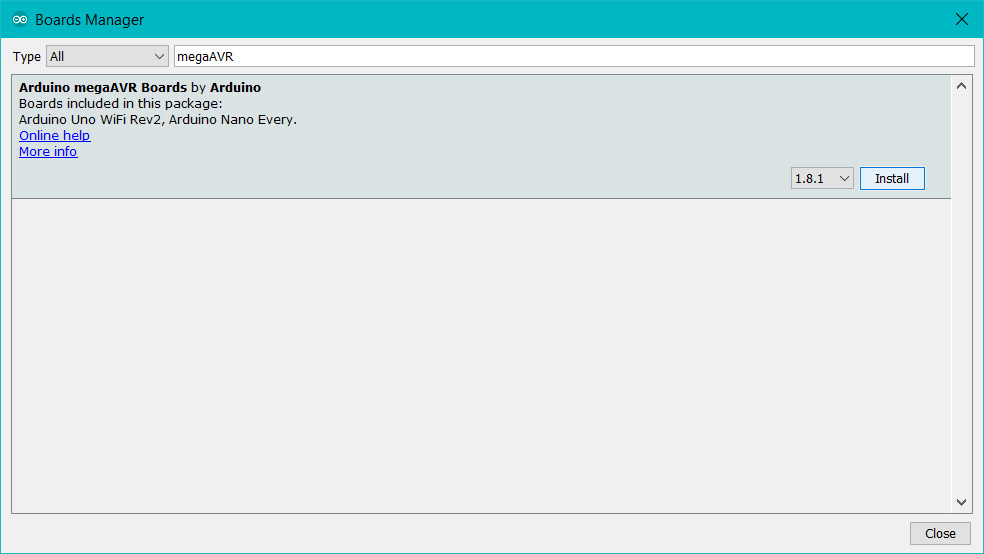

<a href="https://www.arduino.cc/en/uploads/Guide/NanoEVERY_BoardMNGR.jpg" rel="noopener noreferrer"><span class="gatsby-resp-image-wrapper"><img class="gatsby-resp-image-image" title="UnoWIFIR2 BoardMNGR" src="https://www.arduino.cc/wiki/static/8ee3d19b38d9a8ab6657ddcf85cc53c2/4b190/UnoWIFIR2_BoardMNGR.jpg" sizes="(max-width: 800px) 100vw,800px" srcset="/wiki/static/8ee3d19b38d9a8ab6657ddcf85cc53c2/e07e9/UnoWIFIR2_BoardMNGR.jpg 200w,/wiki/static/8ee3d19b38d9a8ab6657ddcf85cc53c2/066f9/UnoWIFIR2_BoardMNGR.jpg 400w,/wiki/static/8ee3d19b38d9a8ab6657ddcf85cc53c2/4b190/UnoWIFIR2_BoardMNGR.jpg 800w,/wiki/static/8ee3d19b38d9a8ab6657ddcf85cc53c2/f30f2/UnoWIFIR2_BoardMNGR.jpg 984w" alt="UnoWIFIR2 BoardMNGR" /></span></a>
<h4 id="installing-drivers-for-the-arduino-nano-every">Installing Drivers for the Arduino NANO Every</h4>
With the megaAVR core installed,you now proceed with the driver installation.

<strong>OSX</strong> No driver installation is necessary on OSX. Depending on the version of the OS you're running,you may get a dialog box asking you if you wish to open the "Network Preferences". Click the "Network Preferences..." button,then click "Apply". The Arduino NANO Every will show up as "Not Configured",but it is still working. You can quit System Preferences.

<strong>Windows (tested on 7,8,and 10)</strong> If you properly installed the megaAVR Core,just connect the Arduino NANO Every to your computer with a USB cable. Windows should initiate its driver installation process once the board is plugged in.

<strong>Linux</strong> No driver installation is necessary for Linux.
<h4 id="open-your-first-sketch">Open your first sketch</h4>
Open the LED blink example sketch: <strong>File &gt; Examples &gt;01.Basics &gt; Blink</strong>.

<a href="https://www.arduino.cc/en/uploads/Guide/Blynk%20Select.jpg" rel="noopener noreferrer"><span class="gatsby-resp-image-wrapper"><img class="gatsby-resp-image-image" title="Blynk 20Select" src="https://www.arduino.cc/wiki/static/b8be80780f22458e251c447fb4be86a3/4b190/Blynk%2520Select.jpg" sizes="(max-width: 800px) 100vw,800px" srcset="/wiki/static/b8be80780f22458e251c447fb4be86a3/e07e9/Blynk%2520Select.jpg 200w,/wiki/static/b8be80780f22458e251c447fb4be86a3/066f9/Blynk%2520Select.jpg 400w,/wiki/static/b8be80780f22458e251c447fb4be86a3/4b190/Blynk%2520Select.jpg 800w,/wiki/static/b8be80780f22458e251c447fb4be86a3/5adf0/Blynk%2520Select.jpg 831w" alt="Blynk 20Select" /></span></a>
<h4 id="select-your-board-type-and-port">Select your board type and port</h4>
You'll need to select the entry in the <strong>Tools &gt; Board</strong> menu that corresponds to your Arduino board.

<a href="https://www.arduino.cc/en/uploads/Guide/NanoEVERY_Board.jpg" rel="noopener noreferrer"><span class="gatsby-resp-image-wrapper"><img class="gatsby-resp-image-image" title="NanoEVERY Board" src="https://www.arduino.cc/wiki/static/467372e56db54f739931c71258e709b3/c8c67/NanoEVERY_Board.jpg" sizes="(max-width: 779px) 100vw,779px" srcset="/wiki/static/467372e56db54f739931c71258e709b3/e07e9/NanoEVERY_Board.jpg 200w,/wiki/static/467372e56db54f739931c71258e709b3/066f9/NanoEVERY_Board.jpg 400w,/wiki/static/467372e56db54f739931c71258e709b3/c8c67/NanoEVERY_Board.jpg 779w" alt="NanoEVERY Board" /></span></a>

Select the serial device of the board from the Tools | Serial Port menu. This is likely to be <strong>COM3</strong> or higher (<strong>COM1</strong> is usually reserved for hardware serial ports). To find out,you can disconnect your board and re-open the menu; the entry that disappears should be the Arduino board. Reconnect the board and select that serial port.

<a href="https://www.arduino.cc/en/uploads/Guide/NanoEVERY_Port.jpg" rel="noopener noreferrer"><span class="gatsby-resp-image-wrapper"><img class="gatsby-resp-image-image" title="NanoEVERY Port" src="https://www.arduino.cc/wiki/static/18e400e7ad56461368736aa3f26bb9da/c8c67/NanoEVERY_Port.jpg" sizes="(max-width: 779px) 100vw,779px" srcset="/wiki/static/18e400e7ad56461368736aa3f26bb9da/e07e9/NanoEVERY_Port.jpg 200w,/wiki/static/18e400e7ad56461368736aa3f26bb9da/066f9/NanoEVERY_Port.jpg 400w,/wiki/static/18e400e7ad56461368736aa3f26bb9da/c8c67/NanoEVERY_Port.jpg 779w" alt="NanoEVERY Port" /></span></a>
<h4 id="upload-the-program">Upload the program</h4>
Now,simply click the "Upload" button in the environment. Wait a few seconds - you should see the green progress bar on the right of the status bar. If the upload is successful,the message "Done uploading." will appear on the left in the status bar.

<span class="gatsby-resp-image-wrapper"><img class="gatsby-resp-image-image" title="UNO Upload" src="https://www.arduino.cc/wiki/static/0bd943210336ba4022b1b4e493775d82/008e2/UNO_Upload.png" sizes="(max-width: 237px) 100vw,237px" srcset="/wiki/static/0bd943210336ba4022b1b4e493775d82/772e8/UNO_Upload.png 200w,/wiki/static/0bd943210336ba4022b1b4e493775d82/008e2/UNO_Upload.png 237w" alt="UNO Upload" /></span>

A few seconds after the upload finishes,you should see the on-board LED start to blink (in orange). If it does,congratulations! You've gotten your Arduino NANO Every up-and-running. If you have problems,please see the <a href="https://www.arduino.cc/en/Guide/Troubleshooting" rel="noopener noreferrer">troubleshooting suggestions</a>.
<h4 id="learn-more-on-the-desktop-ide">Learn more on the Desktop IDE</h4>
<a href="https://create.arduino.cc/projecthub/Arduino_Genuino/getting-started-with-the-arduino-software-ide-623be4" rel="noopener noreferrer">See this tutorial</a> for a generic guide on the Arduino IDE with a few more info on the Preferences,the Board Manager,and the Library Manager.
<h3 id="tutorials">Tutorials</h3>
Now that you have set up and programmed your Arduino NANO Every board,you may find inspiration in our <a href="https://create.arduino.cc/projecthub?by=part&amp;part_id=104149&amp;sort=trending" rel="noopener noreferrer">Project Hub</a> tutorial platform or have a look to the tutorial pages that explain how to use the various features of your board.
<h3 id="please-read">Please Read...</h3>
The microcontroller on the Arduino NANO Every runs at 5V and it is fully electrically compatible with the original Arduino Nano designs. The headers are mapped in the same way and it is possible to substitute any Arduino Nano board with the new Arduino Nano Every.

On the software side,there might be some issue with third-party libraries that don't manage the pin mapping of the microcontroller; if the sketch has assembly parts inside,you should turn on the "Register Emulation" mode to emulate ATmega328P registers in the 4809 while compiling.

<a href="https://www.arduino.cc/en/uploads/Guide/NanoEVERY_Mode.jpg" rel="noopener noreferrer"><span class="gatsby-resp-image-wrapper"><img class="gatsby-resp-image-image" title="NanoEVERY Mode" src="https://www.arduino.cc/wiki/static/4c06814e4ae584a0ee8d7b106a7f3b65/c8c67/NanoEVERY_Mode.jpg" sizes="(max-width: 779px) 100vw,779px" srcset="/wiki/static/4c06814e4ae584a0ee8d7b106a7f3b65/e07e9/NanoEVERY_Mode.jpg 200w,/wiki/static/4c06814e4ae584a0ee8d7b106a7f3b65/066f9/NanoEVERY_Mode.jpg 400w,/wiki/static/4c06814e4ae584a0ee8d7b106a7f3b65/c8c67/NanoEVERY_Mode.jpg 779w" alt="NanoEVERY Mode" /></span></a>
<h4 id="features">Features</h4>
<strong>Batteries,Pins,and board LEDs</strong> <em>Batteries:</em> the Nano Every has no battery connector,nor charger. You can connect any external battery of your liking as long as you respect the voltage limits of the board. <em>Vin:</em> This pin can be used to power the board with a DC voltage source. If the power is fed through this pin,the USB power source is disconnected. This pin is an INPUT. Respect the voltage limits of 7-21V to assure the proper functionality of the board. <em>5V:</em> This pin outputs 5V from the board when powered from the USB connector or from the VIN pin of the board. <em>3.3V:</em> This pin outputs 3.3V through the on-board voltage regulator. <em>LED ON:</em> This LED is connected to the 5V input from either USB or VIN.

<strong>Serial ports on the Arduino NANO Every</strong>

The USB connector of the board is connected to pins 11 and 12 of the SAMD11. The firmware loaded on this microcontroller supports the standard features of the USB to Serial interface common to the Arduino boards,but allows high performance transfers up to 1Mbit/s. The firmware is open source and can be modified to implement new functions. The interface to the SAMD11 / USB is <strong>Serial</strong> and the one available on pins RX0 and TX1 is <strong>Serial1</strong>.

<strong>ADC and PWM resolutions</strong>

The Arduino NANO Every has the standard ADC and PWM resolutions of 10-bits and 8-bits,respectively. This board doesn't have PWM on D11 and therefore it supports only 5 PWM outputs,as on the Arduino UNO WiFi Rev.2.
<h4 id="firmware-for-samd11d14a">Firmware for SAMD11D14A</h4>
The USB interface is managed by a dedicated SAMD11 that is factory loaded with the proper firmware to program the ATMega4809 microcontroller and let the Arduino NANO Every behave as it should when connected to a host computer for programming and serial communication.

Since we don't officially support SAMD11 in our SAMD core,the core to be used is the awesome <a href="https://github.com/mattairtech/ArduinoCore-samd" rel="noopener noreferrer">fork by MattairTech</a>. Once you install it you'll be able to compile a basic firmware for MuxTO. To get the whole firmware you'll need to replace some files with <a href="https://github.com/arduino/ArduinoCore-samd/commits/muxto" rel="noopener noreferrer">our own fork</a> and select the "Arduino MuxTO" variant target.

To reprogram the D11,simply power it while shorting SWDIO to GND pins.

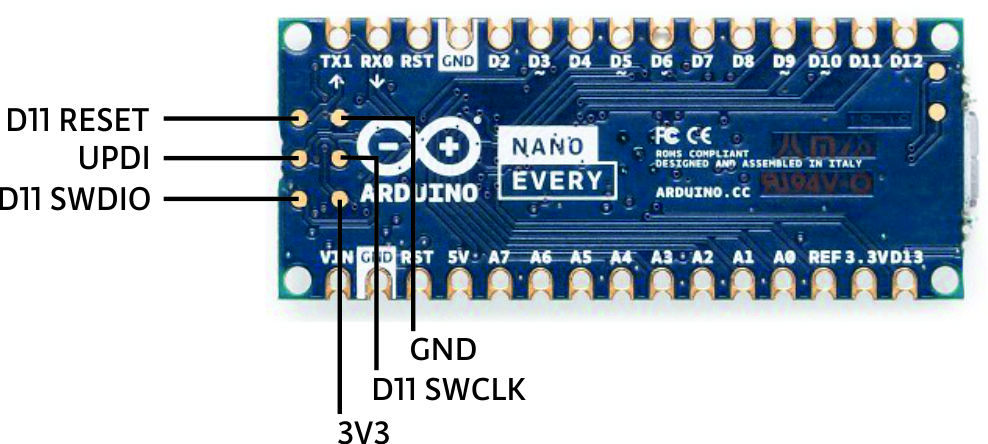

<a href="https://www.arduino.cc/en/uploads/Guide/NanoEvery_D11_Pins.jpg" rel="noopener noreferrer"><span class="gatsby-resp-image-wrapper"><img class="gatsby-resp-image-image" title="NanoEvery D11 Pins" src="https://www.arduino.cc/wiki/static/de027d6630b55d9138f86b803bd72b73/4b190/NanoEvery_D11_Pins.jpg" sizes="(max-width: 800px) 100vw,800px" srcset="/wiki/static/de027d6630b55d9138f86b803bd72b73/e07e9/NanoEvery_D11_Pins.jpg 200w,/wiki/static/de027d6630b55d9138f86b803bd72b73/066f9/NanoEvery_D11_Pins.jpg 400w,/wiki/static/de027d6630b55d9138f86b803bd72b73/4b190/NanoEvery_D11_Pins.jpg 800w,/wiki/static/de027d6630b55d9138f86b803bd72b73/693cc/NanoEvery_D11_Pins.jpg 988w" alt="NanoEvery D11 Pins" /></span></a>

The board will appear as "MuxTo bootloader" and can be reprogrammed using bosses or the IDE Upload button if you selected the "Arduino MuxTO" target.

For more details on the Arduino NANO Every,see the <a href="https://store.arduino.cc/nano-every" rel="noopener noreferrer">product page</a>.
