<h1 class="hckui__typography__h1Responsive hckui__typography__breakWord">This Raspberry Pi Pico-Based Macro Keyboard Features a 3D-Printed Circuit Board</h1>
<h2 class="hckui__typography__h3 hckui__typography__fontWeightNormal hckui__typography__pebble hckui__layout__marginTop15">Redditor Duzitbetter came up with a clever way to 3D print the circuit board for this Raspberry Pi Pico-based macro keyboard.</h2>
<section>
<div class="article_layout__content__3qDV0 project-story hljs-monokai">
<p class="hckui__typography__bodyL">As makers,we are extremely lucky that today we can have affordable,professional-level PCBs fabricated on demand in small quantities and shipped to our doorsteps in just a week or two. Those are absolutely your best option if you’re working on projects that require custom boards and you want them to come as close as possible to consumer devices. But the week or two it takes to get PCBs fabricated and shipped can be too long for quick projects and you may not want to spend the money anyway. That’s why Redditor Duzitbetter came up with a really clever way to 3D print the circuit board for <a class="hckui__typography__linkBlue" href="https://www.reddit.com/r/3Dprinting/comments/ls5gvv/keypad_with_3d_printed_pcb/" rel="nofollow">this Raspberry Pi Pico-based macro keyboard</a>.</p>

<div>
<div class="image_carousel__container__hMJxn undefined">
<div class="image_carousel__wrapper__102VA lazy_image__fade__pGh1K lazy_image__fadeIn__1kICV" data-intersect-callback-id="d7d3b50a-475b-46b0-b5a0-f24b5fd24605">
<div class="hckui__layout__noScrollBar image_carousel__scrollContainer__3mmPE  ">
<div class="image_carousel__imageContainer__22WPm">
<div class="image_carousel__imageWrapper__39AG2"><img class="image_carousel__image__2-CjO  " src="https://hackster.imgix.net/uploads/attachments/1266230/yvobf9o7amj61_sCwSFsqB1O.png?auto=compress%2Cformat&amp;w=740&amp;h=555&amp;fit=max" srcset="" alt="" /></div>
</div>
</div>
</div>
</div>
<div></div>
</div>
<p class="hckui__typography__bodyL">The Raspberry Pi Pico is a brand new microcontroller development board,which is a major departure from the single-board computers that <a class="hckui__typography__linkBlue" href="https://www.hackster.io/raspberry-pi/" rel="nofollow">Raspberry Pi</a> is known for. Like <a class="hckui__typography__linkBlue" href="https://www.hackster.io/arduino" rel="nofollow">Arduino</a> boards,the Pico contains a microcontroller that has its I/O pins broken out to be accessible and a USB port for programming. The Pico can also be configured so that it shows up as a USB HID device when it is plugged into a computer,just like a standard keyboard or mouse. If you connect some key switches to your Pico and configure it in that manner,you can send keyboard shortcuts to the connected computer when a key is pressed. That makes it really handy for building a macro keyboard that can be used for shortcuts,hot keys,and launching more complicated macros.</p>

<div>
<div class="image_carousel__container__hMJxn undefined">
<div class="image_carousel__wrapper__102VA lazy_image__fade__pGh1K lazy_image__fadeIn__1kICV" data-intersect-callback-id="3df33e8a-c6a8-4b2f-984c-5fac80452dad">
<div class="hckui__layout__noScrollBar image_carousel__scrollContainer__3mmPE  ">
<div class="image_carousel__imageContainer__22WPm">
<div class="image_carousel__imageWrapper__39AG2"><img class="image_carousel__image__2-CjO  " src="https://hackster.imgix.net/uploads/attachments/1266231/pggbr5o7amj61_DIigb0W4y8.png?auto=compress%2Cformat&amp;w=740&amp;h=555&amp;fit=max" srcset="" alt="" /></div>
</div>
</div>
</div>
</div>
<div></div>
</div>

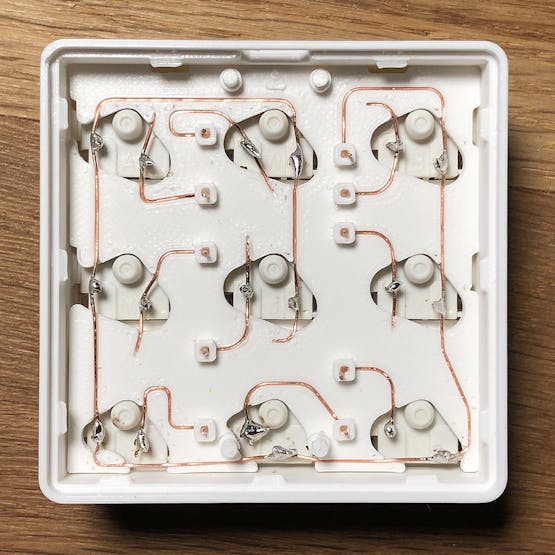

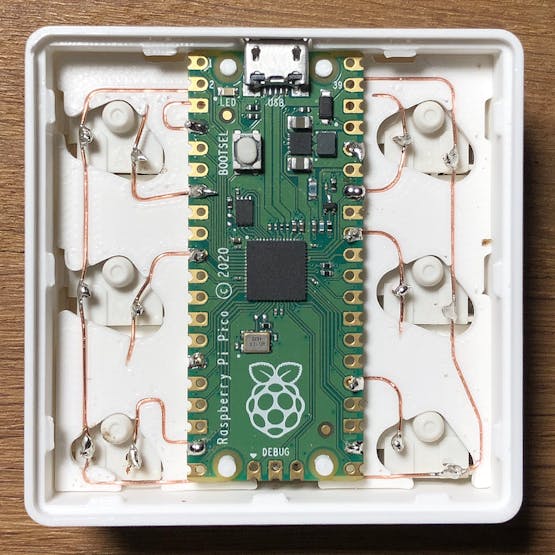

<p class="hckui__typography__bodyL">That is what was done here,with Cherry MX key switches connected to the Raspberry Pi Pico. Those switches and the Pico itself were housed within a simple <a class="hckui__typography__linkBlue" href="https://www.hackster.io/3d-printing" rel="nofollow">3D-printed</a> enclosure,and the switches got 3D-printed key caps. But this project stands out because of that 3D-printed “circuit board.” Instead of waiting for a relatively simply PCB to be fabricated and mailed,Duzitbetter designed and 3D-printed guides for thin copper wires. Those can be layered,just like the traces on a multilayer PCB. Technically speaking,this is just point-to-point wiring. But those 3D-printed guides keep the wiring nice and tidy,while also ensuring that wires don’t touch each other,so bare copper wires can be used. It may not look as nice as a shiny new PCB,but it is perfectly functional and can be quickly 3D-printed while you’re eating lunch.</p>

<div>
<div class="image_carousel__container__hMJxn undefined">
<div class="image_carousel__wrapper__102VA lazy_image__fade__pGh1K lazy_image__fadeIn__1kICV" data-intersect-callback-id="c09abacd-3a1b-4e5e-8876-ed9df7e8d475">
<div class="hckui__layout__noScrollBar image_carousel__scrollContainer__3mmPE  ">
<div class="image_carousel__imageContainer__22WPm">
<div class="image_carousel__imageWrapper__39AG2"><img class="image_carousel__image__2-CjO  " src="https://hackster.imgix.net/uploads/attachments/1266232/bjo8m6o7amj61_kgAy0hEK7c.png?auto=compress%2Cformat&amp;w=740&amp;h=555&amp;fit=max" srcset="" alt="" /></div>
</div>
<div><a href="https://www.hackster.io/news/this-raspberry-pi-pico-based-macro-keyboard-features-a-3d-printed-circuit-board-cfaa05a9dbb2?utm_source=Hackster+Marketing&amp;utm_campaign=d5e6aaba16-EMAIL_CAMPAIGN_2019_02_14_02_53_COPY_01&amp;utm_medium=email&amp;utm_term=0_86d76c4d75-d5e6aaba16-144429707&amp;mc_cid=d5e6aaba16&amp;mc_eid=c0d451d378">Source</a></div>
</div>
</div>
</div>
<div></div>
</div>
</div>
